module jack cat6 A chuẩn dùng cho panel commscope P/N :2153354-1
-
2153354-1
-
Liên hệ
module rack cat6 A chuẩn dùng cho panel commscope P/N :2153354-1
2153354-1
©2022 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: June 14, 2022
Page 2 of 2
Width 17.2 mm | 0.677 in
Depth 38.3 mm | 1.508 in
Compatible Cable Diameter, maximum 9 mm | 0.354 in
Contact Plating Thickness 1.27 µm
Compatible Conductor Gauge, solid 26–22 AWG
Compatible Conductor Gauge, stranded 24 AWG
Material Specifications
Contact Base Material Beryllium copper
Contact Plating Material Gold
Material Type Polycarbonate
Danh mục: CÁP MẠNG- CÁP ĐỒNG ,CÁP MẠNG COMMSCOPE
- Thông tin sản phẩm

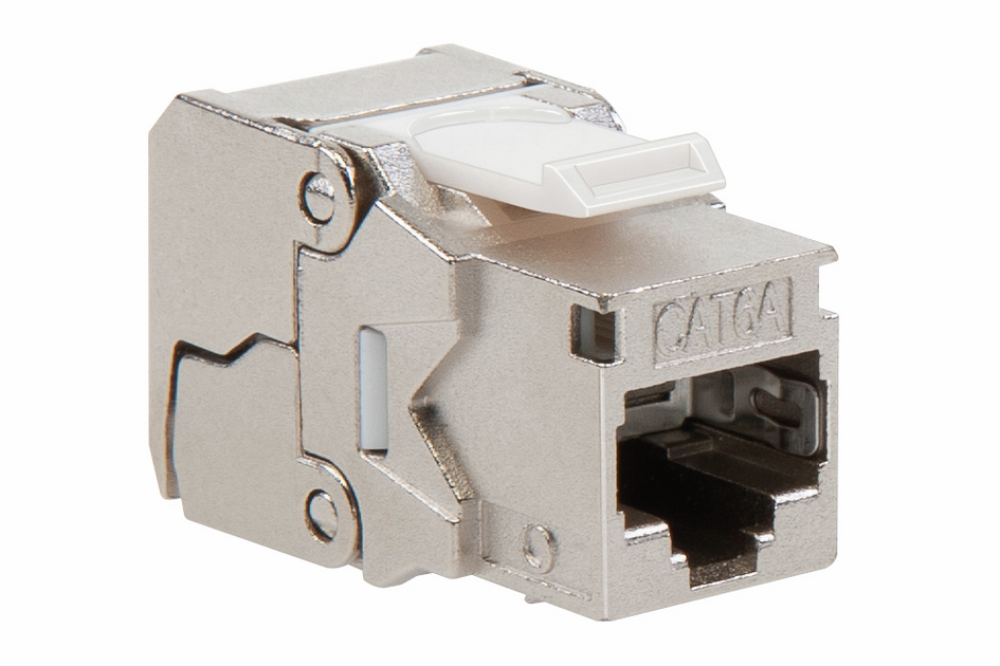

RJ45 Modular Jack E-Series, category 6A, shielded, 8-position
Product Classification Regional Availability Asia | Australia/New Zealand | EMEA Portfolio NETCONNECT®
Product Type Modular jack Product Series E Series General Specifications ANSI/TIA Category 6A Cable Type Shielded Color Silver Conductor Type Solid | Stranded Integrated Dust Cover Type None Outlet Type Standard Termination Type IDC Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA Wiring T568A | T568B Dimensions Panel Thickness, recommended 1.6 mm | 0.063 in Height 21.5 mm | 0.846 in
Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Flammability Rating UL 94 V-0
Packaging and Weights Packaging quantity 12 Packaging
Type Tray in box
