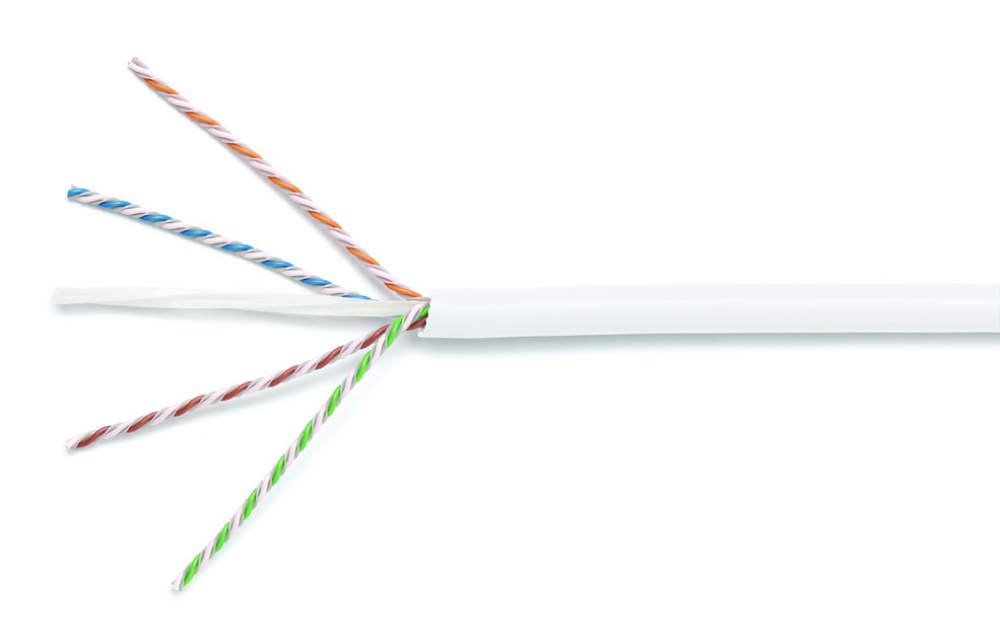

Cat 6A UTP chuẩn 23awg 10G màu trắng 305m/tthùng commscope SYSTIMAX® P/N:76010731

Cat 6A UTP chuẩn 23awg 10G màu trắng 305m/tthùng commscope SYSTIMAX® P/N:76010731

• Mã sản phẩm:
  76010731
• Liên hệ

Cat 6A UTP chuẩn 23awg 10G màu trắng 305m/tthùng commscope SYSTIMAX® P/N:76010731
Product Classification
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America
Portfolio SYSTIMAX®
Product Type Twisted pair cable
Product Brand GigaSPEED X10D®
General Specifications
Product Number 3091B
ANSI/TIA Category 6A
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Separator Type Isolator
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Dimensions
Cable Length 304.8 m | 1000 ft
Diameter Over Insulated Conductor 0.864 mm | 0.034 in
Diameter Over Jacket, nominal 7.239 mm | 0.285 in
Jacket Thickness 1.295 mm | 0.051 in
Conductor Gauge, singles 23 AWG
Electrical Specifications
dc Resistance Unbalance, maximum 4 %
dc Resistance, maximum 7.61 ohms/100 m | 2.32 ohms/100 ft
Delay Skew, maximum 45 ns
Dielectric Strength, minimum 2500 Vdc
Mutual Capacitance at Frequency 6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 67 %
Operating Frequency, maximum 550 MHz
Operating Voltage, maximum 80 V
Propagation Delay, maximum 536 ns/100m @500MHz
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type
4) for the safe delivery of power over LAN cable when installed according
to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA
TSB-184-A
Segregation Class c
Material Specifications
Conductor Material Bare copper
Insulation Material Polyolefin
Low Smoke Zero H
Jacket Material Low Smoke Zero Halogen (LSZH)
Separator Material Polyolefin
Separator 2 Material Polyolefin
Mechanical Specifications
Pulling Tension, maximum 11.34 kg | 25 lb
Environmental Specifications
Installation temperature 0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Acid Gas Test Method IEC 60754-2
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s2
EN50575 CPR Cable EuroClass Droplets Rating d2
EN50575 CPR Cable EuroClass Acidity Rating a1
Environmental Space Low Smoke Zero Halogen (LSZH)
Flame Test Method IEC 60332-3-22
Smoke Test Method IEC 61034-2
Packaging and Weights
Cable weight 54.913 kg/km | 36.9 lb/kft
Packaging Type WE TOTE® box
